Cleanroom Air Handling Unit
ALT40, ALT50
ALTER Modular Air Handling Units.
Designed for cleanroom environment.
Double skin construction with panel insulation.
Eurovent certified performance.
Share:
Fully customised Air handling units for large airflows of up to 142,800 m3/h, with flexibility in configuration & material.
- Frameless design to eliminate cold bridge and minimise risk of condensation in high humidity regions.
- Double-skin insulated panel with polyurethane injected foam.
- Casing panel material of high grade galvanised steel or stainless steel to suit your application.
- Options of belt-driven or plug fans with IE3 efficiency or electronically commutated motor (EC motor).
- Eurovent Test Report.
| Thermal Transmittance | T2 |
| Thermal Bridging of casing | TB2 |
| Mechanical Strength of casing | D1 (M) |
| Casing Air Leakage | L1(M)/-400 Pa, L1(M)/+700 Pa |
| Filter Bypass Leakage | F9 |

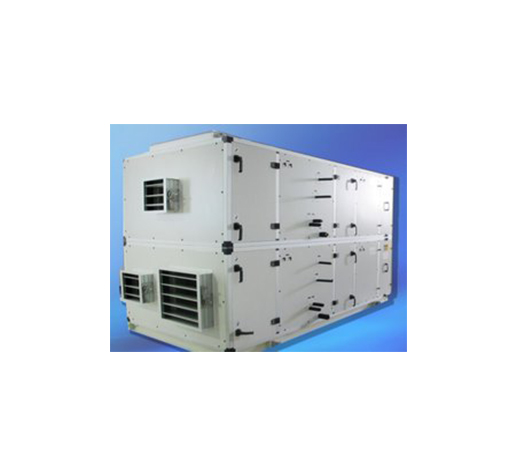

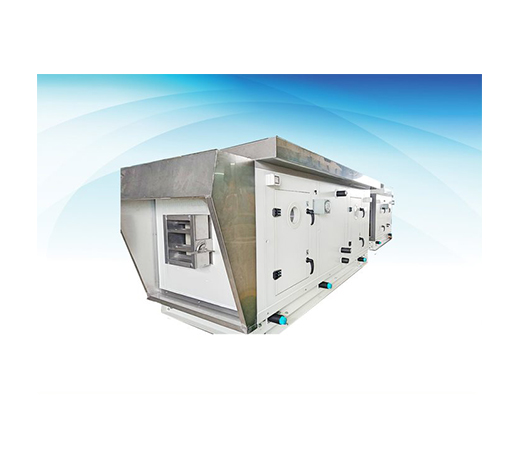

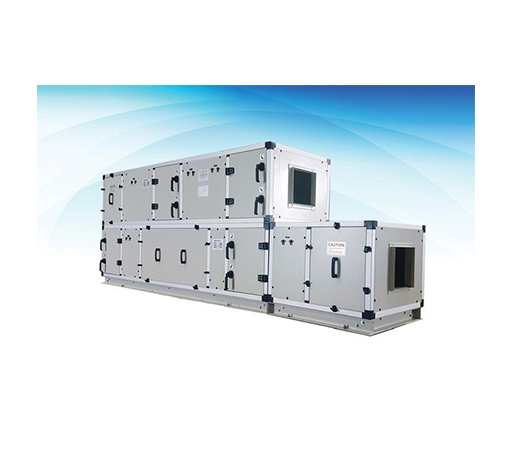

ALTER Air Handling Units.
Airflow from 3,000 to 72,000 m³/h.
Can be designed for higher airflow up to 142,800 m³/h.
Fully customised to comply with your stringent specification and adapt to your space limitation.
Delivered in modules to be assembled at site.
